Driver Monitoring System (DMS) | with Driver Fatigue Alarm | MR830 | Kit for Commercial Fleets Management | OEM/ODM Custom
- Model
- DMS-MR830
Item specifics
- Voltage
- 12/24V
- Video Record Resolution
- 1920x1080
- Satellite Positioning
- Support GPS and BD (Beidou) dual-mode positioning
- Optional
- I/O or RS232
- Wireless Communication
- 4G or Wifi
- Storage
- 512GB TF Card
- Size
- 105*72*163mm
- Application
- Suitable for All Vehicles
- Operating Temperature
- -20℃ ~ 70℃
- Warranty
- 2 years
Review
Description

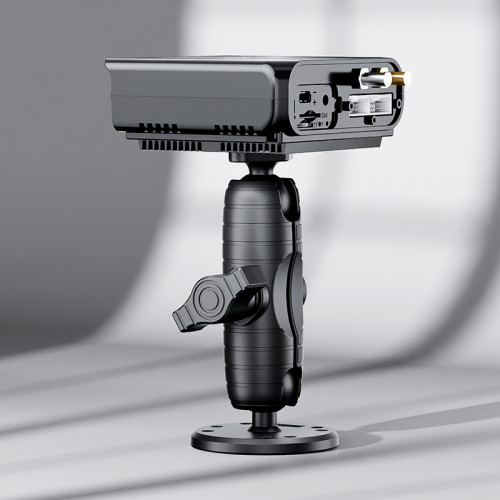

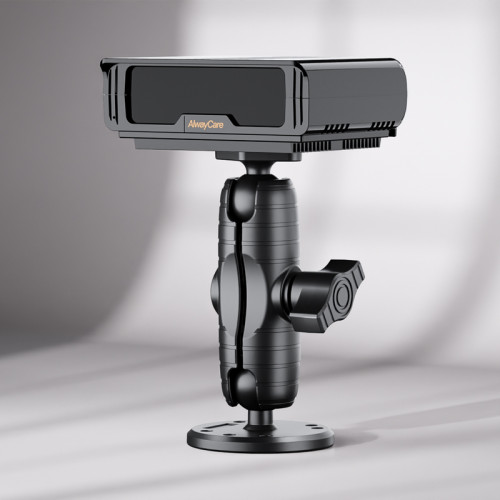

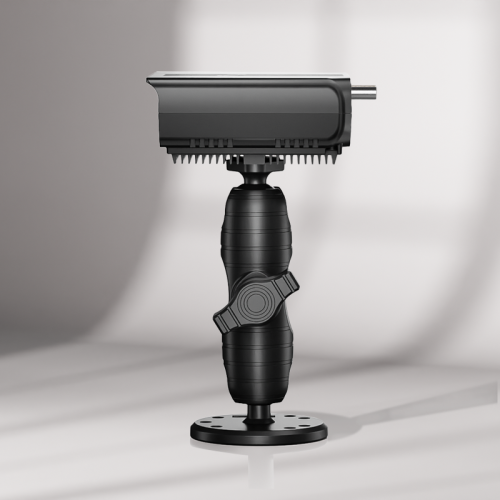

Driver Monitoring System MR830
● Driver behavior detection and alarm
Fatigue driving, yawning, distraction, smoking and other abnormal situations will record data and alarm.
● Geographical fence
● Face recognition
● Function integration
Integrated DMS (Driver Monitor System) / ADAS/ driver identification/ GPS/ Beidou/ WIFI/ 4G/ automatic warning/ algorithm, trajectory playback, video playback, 512GB SD card storage.
● Real-time remote
GPS and Beidou dual-mode positioning, video monitoring, voice intercom.
DMS Technical Parameters
Item Type | Fatigue Warning Device | |||
Application | Suitable for All Vehicles | |||
| Power Input | 12V/24V | |||
Power Ouput | 15W | |||
| Video input | 1920x1080 | |||
Video Encoding | H.264/H.265 | |||
System | APP/Web | |||
Working Temperature: | -20℃-70℃ | |||
Satellite Positioning | Support GPS | |||
Optional | I/O or RS232 | |||
Wireless Communication | 4G or Wifi | |||
Storage | 512GB TF Card | |||
Warranty
| 2 years | |||
DMS Functions
Driver Monitoring System
● Fatigue Alarm
● Yawning Alarm
● Calling Alarm
● Smoking Alarm
● Distraction Alarm
● Infrared Blocking Alarm
● Seat Belt Alarm
● Driver Change Alarm
● Driver Abnormality Alarm
● Driver ID Identification Alarm
● Overspeed Alarm
● Camera Failure Alarm
● Camera Blocking Alarm
Advanced Driving Assistance System
Forward Collision Warning ●
Pedestrian Collision Warning ●
Lane Departure Warning ●
Headway Monitoring&Warning ●
Forward Vehicle Start Reminder ●
Support Automatic Braking ●
Forward Rolling Reminder ●
Over-speed Reminder ●
CMS Platform
The CMS platform is available on PC and App for easy fleet management.
● Real-time monitor vehicle's surrounding environment, vehicle location, driver status and emergency alerts；
● Intuitive dashboard, route optimization, video tracking.
DMS Version Differences
| Version | Customer Type | Configuration |
| MR830 Standard Version （MR830-SV） | 1. Suitable for individual drivers. 2. Suitable for commercial fleets. ● do not need platform management. ● do not need I/O or RS232 to connect with other devices,only need the voice alarm to remind the driver. | DMS only voice alarm prompt
(No need I/O, RS232 or Platform) |
| MR830 Professional Version
（MR830-PV） | ● Suitable for commercial fleets, especially for customers who have their own AVL systems (such as MDVR or GPS tracker), which can be integrated into customer's AVL system through I/O port or through RS232 serial port. | DMS+I/O+RS232+Video output
(No need CMS Platform) |
| MR830 Platform Version
（MR830-PF） | ● Suitable for commercial fleets that do not need I/O or RS232 to connect with other devices. ● Need to monitor drivers' driving behaviors and the Platform for fleet management. | DMS+4G+optional CMS platform
(No need I/O and RS232) |
MR830 Platform Pro Version
（MR830-PF-Pro） | ● Suitable for commercial fleets that need I/O or RS232 to connect with other devices. ● Need to monitor drivers' driving behaviors and the Platform for fleet management. | DMS+4G+optional CMS platform+IO+RS232+Video output |
MR830 Platform Max Version
（MR830-PF-Max） | ● Suitable for commercial fleets that do not need I/O or RS232 to connect with other devices. In addition to DMS camera to monitor drivers' driving behaviors, other 1-3 channels cameras also need to be monitored the front, rear, side or cabin of the vehicle. ● Need the Platform for fleet management. | DMS+4G+optional CMS platform + additional 3 cameras supported
(No need I/O and RS232) |
MR830 Platform Pro Max Version
（MR830-PF-Pro-Max） | ● Suitable for commercial fleets that need I/O or RS232 to connect with other devices. In addition to DMS camera to monitor drivers' driving behaviors, other 1-3 channels cameras also need to be monitored the front, rear, side or cabin of the vehicle. ● Need the Platform for fleet management. | DMS+4G+optional CMS platform +additional 3 cameras supported +IO+RS232+Video output |
MR830 ADAS Platform Version
（MR830-AP） | ● Suitable for commercial fleets that do not need I/O or RS232 to connect with other devices. In addition to DMS camera to monitor drivers' driving behaviors and ADAS camera to monitor the front road/lanes/pedestrians, other 1-2 channels cameras also need to be monitored the front, rear, side or cabin of the vehicle. ● Need the Platform for fleet management. | DMS+ADAS+4G+optional CMS platform+additional 2 cameras supported
(No need I/O and RS232) |
MR830 ADAS & BSD Platform Version （MR830-APB） | ● Suitable for commercial fleets, especially for customers who have their own AVL systems (such as MDVR or GPS tracker), which can be integrated into customer's AVL system through I/O port or through RS232 serial port. ● Need to monitor drivers' driving behaviors and the front road/lanes/pedestrians, as well as the Platform for fleet management. | DMS+ADAS+BSD+CMS platform+additional 1 camera supported+IO+RS232+Video output |
Specification Download
FAQ
What is the unique selling point of DMS MR830 ?
1. The algorithm is in the camera, no MDVR host and easier installation.
2. Not take up space, one-step installation, money-saving and labor-saving.
3. 13 types alarm functions, such as Fatigue, Distraction, Phoning, Smoking, Driver change, Camera blocking, Infrared sunglasses blocking, Driver ID recognition, etc.
4. Support up to 512GB micro SD card storage (most companies' products only support up to 256GB).
5. Optional IO and RS232 to be integrated with customers' GPS tracker or MDVR.
6. Optional CareDrive CMS platform supporting API integration with customer's cloud.
7. Support various language customization and functions customization.
How much data does an alarm attachment consume?
1. An alarm attachment consumes about 1~2MB. (the more alarms are triggered, the more data is consumed)
2. Real-time video playback, one channel consumes about 170MB per hour. (The more frequently you browse live videos, the more data you consume).
How to set the time zone?
Need to use the debugging APP to set.
