AI Mobile DVR | with Driver Fatigue Warning Device | MR910-DA | Kit for Truck Fleets
- Model
- MR910-DA
Item specifics
- Voltage
- 12/24V
- Video Record Resolution
- 1920x1080
- Satellite Positioning
- Support GPS and BD (Beidou) dual-mode positioning
- Optional
- I/O or RS232
- Wireless Communication
- 4G or Wifi
- Storage
- 512GB SD Card
- Video Encoding
- H.264/H.265
- Application
- Suitable for All Vehicles
- Operating Temperature
- -20℃ ~ 70℃
- Warranty
- 15 Months
Review
Description

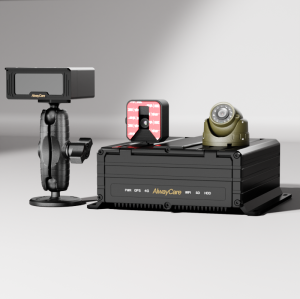

AI MDVR MR910-DA
● Function integration
Optional Integrated DMS (Driver Monitoring System) / ADAS (Advanced Driver Assistance System) /BSD (Blind Spot Detection) automatic warning algorithm, Support GPS/ Beidou/ WIFI/ 4G, trajectory playback, video playback, 512GB SD card storage.
● Real-time remote
GPS and Beidou dual-mode positioning, video monitoring, voice intercom.
Technical Parameters
Item Type | AI MDVR Device | |||
Application | Suitable for All Vehicles | |||
| Power Input | 12V/24V | |||
Power Ouput | 15W | |||
| Video input | 1920x1080 | |||
Video Encoding | H.264/H.265 | |||
System | APP/Web | |||
Working Temperature: | -20℃-70℃ | |||
Satellite Positioning | Support GPS | |||
Optional | I/O or RS232 | |||
Wireless Communication | 4G or Wifi | |||
Storage | 512GB SD Card | |||
Warranty
| 15 Months | |||
Functions
Mobile Digital Video Recorder
● AHD Real-Time Monitoring & Playback
● 4-Channel Recording
● APP Alarm Setting
● IP Voice Intercom
● Support GPS Tracking
● Wide temperature and Shockproof
Driver Monitoring System
Fatigue Alarm ●
Yawning Alarm ●
Calling Alarm ●
Smoking Alarm ●
Distraction Alarm ●
Infrared Blocking Alarm ●
No Portrait Alarm ●
Driver ID Identification Alarm ●
Overspeed Alarm ●
Camera Blocking Alarm ●
Advanced Driving Assistance System
● Forward Collision Warning
● Pedestrian Collision Warning
● Lane Departure Warning
● Headway Monitoring&Warning
CMS Platform
The CMS platform is available on PC and App for easy fleet management.
● Real-time monitor vehicle's surrounding environment, vehicle location, driver status and emergency alerts；
● Intuitive dashboard, route optimization, video tracking.
Version Differences
| Version | Customer Type | Configuration |
| MR910 with DMS+ Platform Version
(MR910-D) | ● Suitable for customers who need to monitor drivers' driving behaviors, remind drivers by voice alarms and need platform fleet management. | 4-channel MDVRDMS CameraTop View Camera4G AntennaExternal Speaker |
| MR910 with ADAS+Platform Version
(MR910-A) | ● Suitable for customers who need to monitor front road environment to remind drivers by voice alarms and need platform for fleet management. | 4-channel MDVRADAS Camera4G AntennaExternal Speaker |
| MR910 with DMS+ADAS+Platform Version
(MR910-DA) | ● Suitable for customers who need to monitor drivers' driving behaviors and the front road environment to remind drivers by voice alarms and need platform for fleet management. | 4-channel MDVRDMS Camera ADAS Camera4G AntennaExternal Speaker |
MR910 with DMS+ADAS+1-ch BSD Platform Version
(MR910-DAB1) | ● Suitable for customers who need to monitor drivers' driving behavior and the front road environment, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area and need platform for fleet management. | 4-channel MDVRDMS Camera
ADAS Camera
BSD Camera4G AntennaExternal Speaker |
MR910 with 360 and BSD Version
(MR910-360B) | ● Suitable for customers who need panoramic video monitoring around the vehicle, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area. | 4-channel MDVR
360 CameraExternal Speaker |
MR910 with 360 and BSD Platform Version
(MR910-360BP) | ● Suitable for customers who need panoramic video monitoring around the vehicle, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area and need platform for fleet management. | 4-channel MDVR
360 Camera
4G AntennaExternal Speaker |
MR910 Blind Spot Detection Version
(MR910-BSD) | ● Suitable for customers who need to blind spot monitoring, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area. | 4-channel MDVRExternal Speaker |
