AI Mobile Digital Video Recorder (AI MDVR) | with Driver Fatigue Warning Device | MR910-DA | Kit for Truck Fleets
- Model
- MR910-DA
Item specifics
- Voltage
- 12/24V
- Video Record Resolution
- 1920x1080
- Satellite Positioning
- Support GPS and BD (Beidou) dual-mode positioning
- Optional
- I/O or RS232
- Wireless Communication
- 4G or Wifi
- Storage
- 512GB SD Card
- Video Encoding
- H.264/H.265
- Application
- Suitable for All Vehicles
- Operating Temperature
- -20℃ ~ 70℃
- Warranty
- 2 years
Review
Description

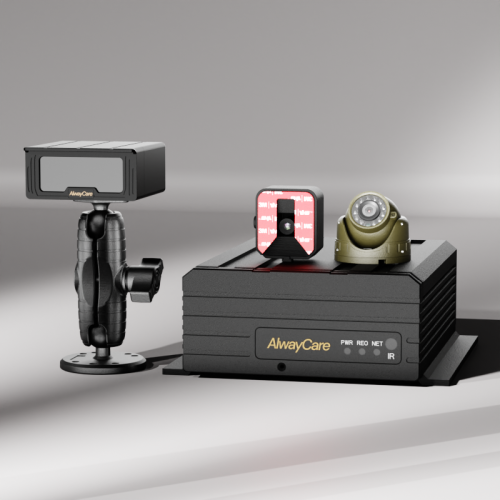

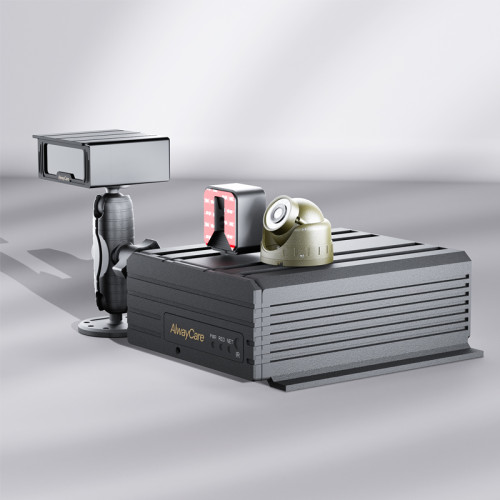

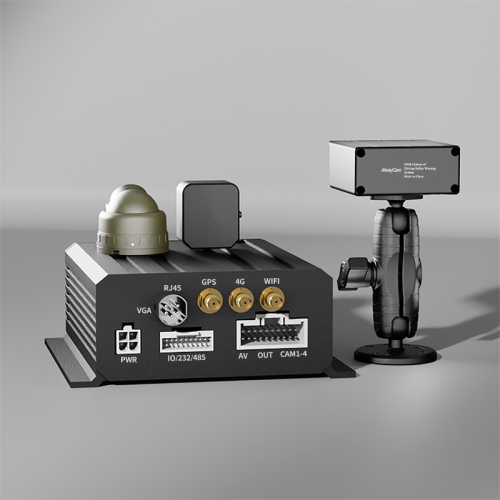

AI MDVR MR910-DA
● Function integration
Optional Integrated DMS (Driver Monitoring System) / ADAS (Advanced Driver Assistance System) /BSD (Blind Spot Detection) automatic warning algorithm, Support GPS/ Beidou/ WIFI/ 4G, trajectory playback, video playback, 512GB SD card storage.
● Real-time remote
GPS and Beidou dual-mode positioning, video monitoring, voice intercom.
Technical Parameters
Item Type | AI MDVR Device | |||
Application | Suitable for All Vehicles | |||
| Power Input | 12V/24V | |||
Power Ouput | 15W | |||
| Video input | 1920x1080 | |||
Video Encoding | H.264/H.265 | |||
System | APP/Web | |||
Working Temperature: | -20℃-70℃ | |||
Satellite Positioning | Support GPS | |||
Optional | I/O or RS232 | |||
Wireless Communication | 4G or Wifi | |||
Storage | 512GB SD Card | |||
Warranty
| 2 years | |||
Functions

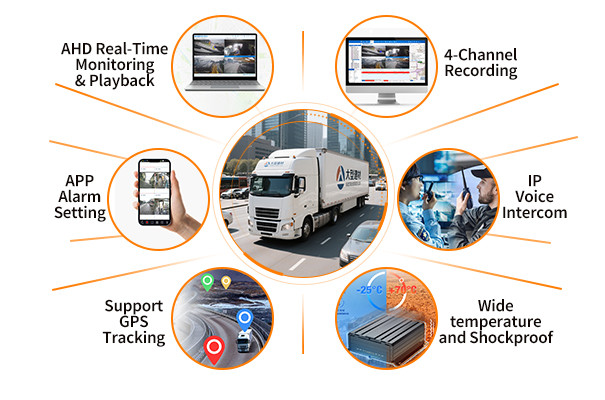

Mobile Digital Video Recorder
● AHD Real-Time Monitoring & Playback
● 4-Channel Recording
● APP Alarm Setting
● IP Voice Intercom
● Support GPS Tracking
● Wide temperature and Shockproof

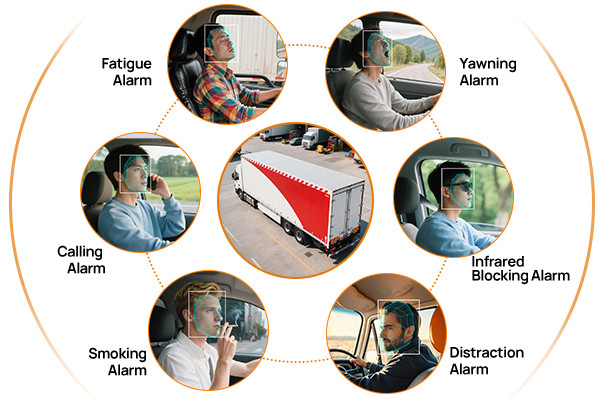

Driver Monitoring System
Fatigue Alarm ●
Yawning Alarm ●
Calling Alarm ●
Smoking Alarm ●
Distraction Alarm ●
Infrared Blocking Alarm ●
No Portrait Alarm ●
Driver ID Identification Alarm ●
Overspeed Alarm ●
Camera Blocking Alarm ●

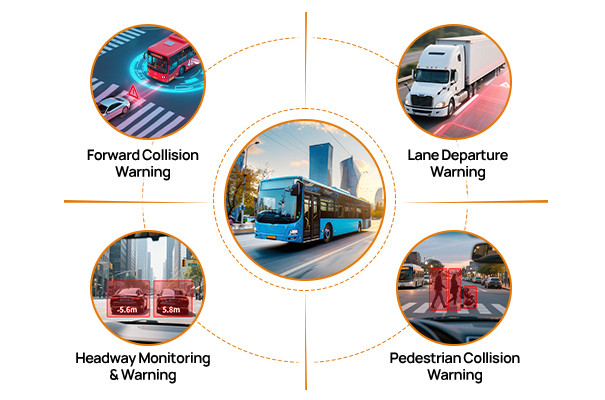

Advanced Driving Assistance System
● Forward Collision Warning
● Pedestrian Collision Warning
● Lane Departure Warning
● Headway Monitoring&Warning
CMS Platform
The CMS platform is available on PC and App for easy fleet management.
● Real-time monitor vehicle's surrounding environment, vehicle location, driver status and emergency alerts；
● Intuitive dashboard, route optimization, video tracking.
Version Differences
| Version | Customer Type | Configuration |
| MR910 with DMS+Platform Version
(MR910-D) | 1. Suitable for commercial fleets. 2. Suitable for customers who need to monitor drivers' driving behaviors, remind drivers by voice alarms and need platform fleet management. | 4-channel MDVRDMS CameraTop View Camera4G AntennaExternal Speaker |
| MR910 with ADAS+Platform Version
(MR910-A) | 1. Suitable for commercial fleets.2. Suitable for customers who need to monitor front road environment to remind drivers by voice alarms and need platform for fleet management. | 4-channel MDVRADAS Camera4G AntennaExternal Speaker |
| MR910 with DMS+ADAS+Platform Version
(MR910-DA) | 1. Suitable for commercial fleets.
2. Suitable for customers who need to monitor drivers' driving behaviors and the front road environment to remind drivers by voice alarms and need platform for fleet management. | 4-channel MDVRDMS Camera ADAS Camera4G AntennaExternal Speaker |
MR910 with DMS+ADAS+1-ch BSD Platform Version
(MR910-DAB1) | 1. Suitable for commercial fleets.
2. Suitable for customers who need to monitor drivers' driving behavior and the front road environment, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area and need platform for fleet management. | 4-channel MDVRDMS Camera
ADAS Camera
BSD Camera4G AntennaExternal Speaker |
MR910 with 360 and BSD Version
(MR910-360B) | 1. Suitable for commercial fleets.
2. Suitable for customers who need panoramic video monitoring around the vehicle, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area. | 4-channel MDVR
360 CameraExternal Speaker |
MR910 with 360 and BSD Platform Version
(MR910-360BP) | 1. Suitable for commercial fleets.
2. Suitable for customers who need panoramic video monitoring around the vehicle, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area and need platform for fleet management. | 4-channel MDVR
360 Camera
4G AntennaExternal Speaker |
MR910 Blind Spot Detection Version
(MR910-BSD) | 1. Suitable for commercial fleets.
2. Suitable for customers who need to blind spot monitoring, need voice alarms to remind drivers of pedestrians and non-motor vehicles entering the blind area. | 4-channel MDVRExternal Speaker |
