Driver Monitoring System (DMS) | with Driver Fatigue Detection | MR810 | Safe Driving Gadget for Bus Fleets | OEM/ODM Custom
- Model
- DMS-MR810
Item specifics
- Voltage
- 12/24V
- Video Record Resolution
- 1280x720
- Satellite Positioning
- Support GPS and BD (Beidou) dual-mode positioning
- Optional
- I/O or RS232
- Wireless Communication
- Wifi
- Storage
- 512GB SD Card
- Video Encoding
- H.264/H.265
- Application
- Suitable for All Vehicles
- Operating Temperature
- -20℃ ~ 70℃
- Warranty
- 2 years
Review
Description

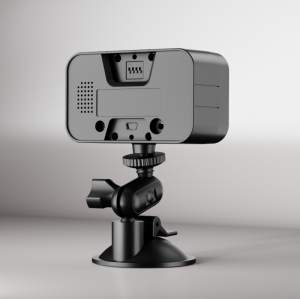

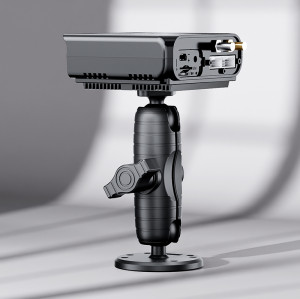

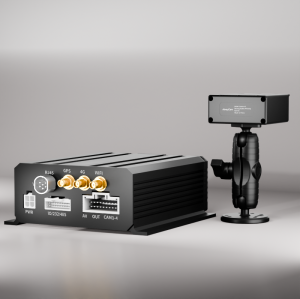

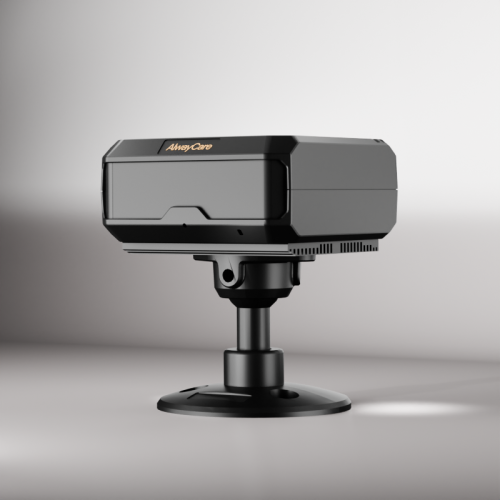

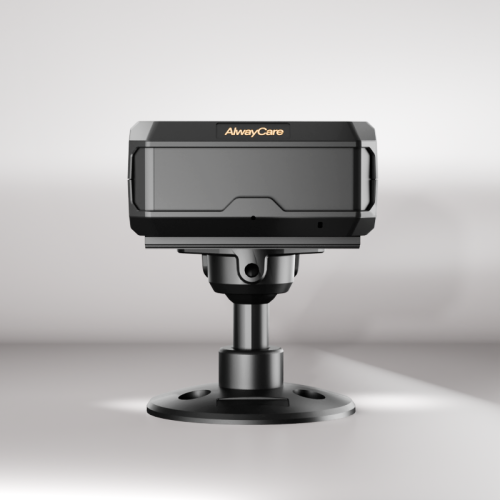

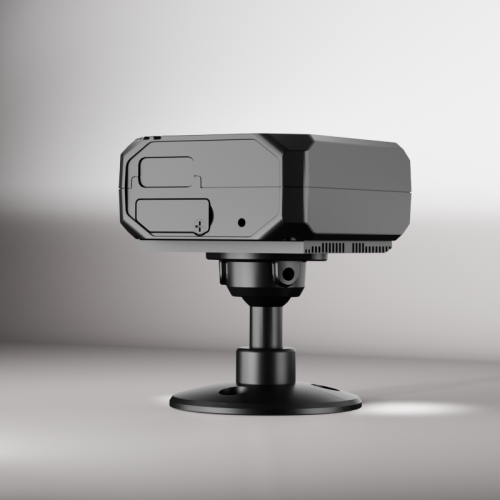

Driver Monitoring System MR810
● Driver behavior detection and alarm
Fatigue driving, yawning, distraction, smoking and other abnormal situations will record data and alarm.
● Function integration
Integrated DMS (Driver Monitor System) / GPS/ Beidou/ WIFI/ automatic warning/ algorithm, trajectory playback, video playback, 512GB SD card storage.
● Real-time remote
GPS and Beidou dual-mode positioning, video monitoring, voice intercom.
DMS Technical Parameters
Item Type | Fatigue Warning Device | |||
Application | Suitable for All Vehicles | |||
| Power Input | 12V/24V | |||
Power Ouput | 5W | |||
| Video input | 1280x720 | |||
Video Encoding | H.264/H.265 | |||
System | APP/Web | |||
Working Temperature: | -20℃-70℃ | |||
Satellite Positioning | Support GPS | |||
Optional | I/O or RS232 | |||
Wireless Communication | Wifi | |||
Storage | 512GB SD Card | |||
Warranty
| 2 years | |||
DMS Functions
Driver Monitoring System
● Fatigue Alarm
● Yawning Alarm
● Calling Alarm
● Smoking Alarm
● Distraction Alarm
● Seat Belt Alarm
● Infrared Blocking Alarm
● Driver Change Alarm
● Driver Abnormality Alarm
● Driver ID Identification Alarm
● Overspeed Alarm
● Camera Failure Alarm
● Camera Blocking Alarm
Compact Design●
Reliable Protection●
All-weather Performance●
99% Highly accurate detection●
DMS Version Differences
| Version | Customer Type | Video Output |
| MR810 Professional Version （MR810-PV） | 1. Suitable for individual drivers. 2. Suitable for commercial fleets. ● need to monitor driver driving behavior, remind the driver through voice alarm, and transmit the alarm signal to the GPS system through I/O or RS232. | No |
| MR810 Professional Output Version
（MR810-PVO） | 1 Channel AHD 720P |
